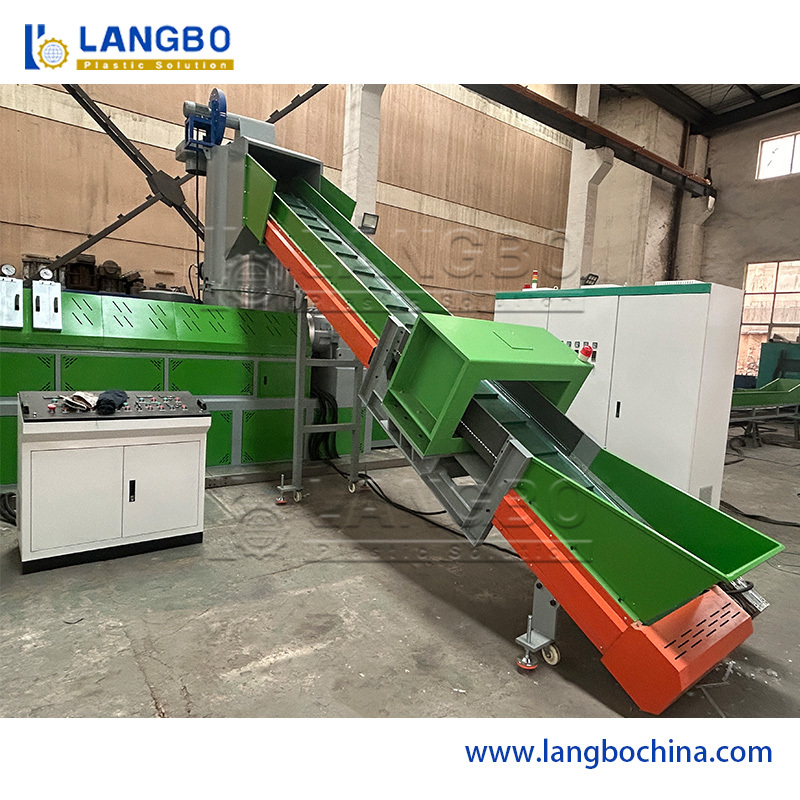

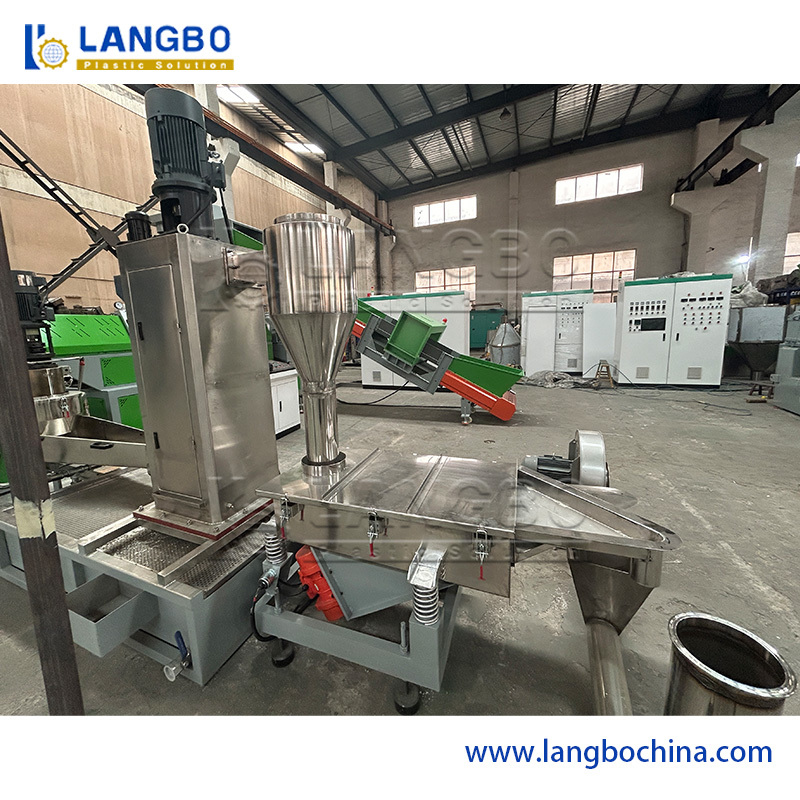

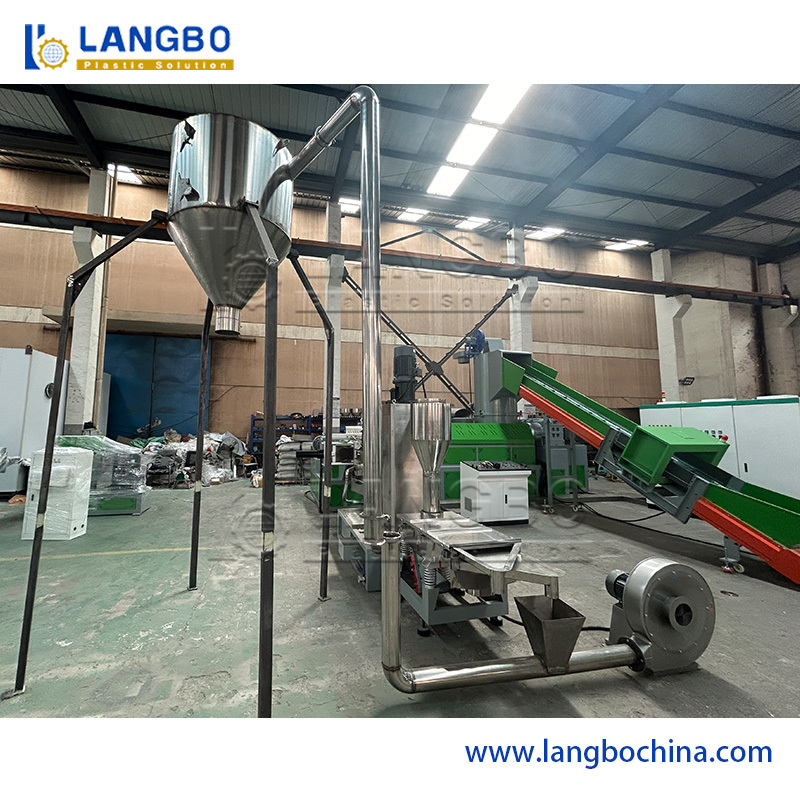

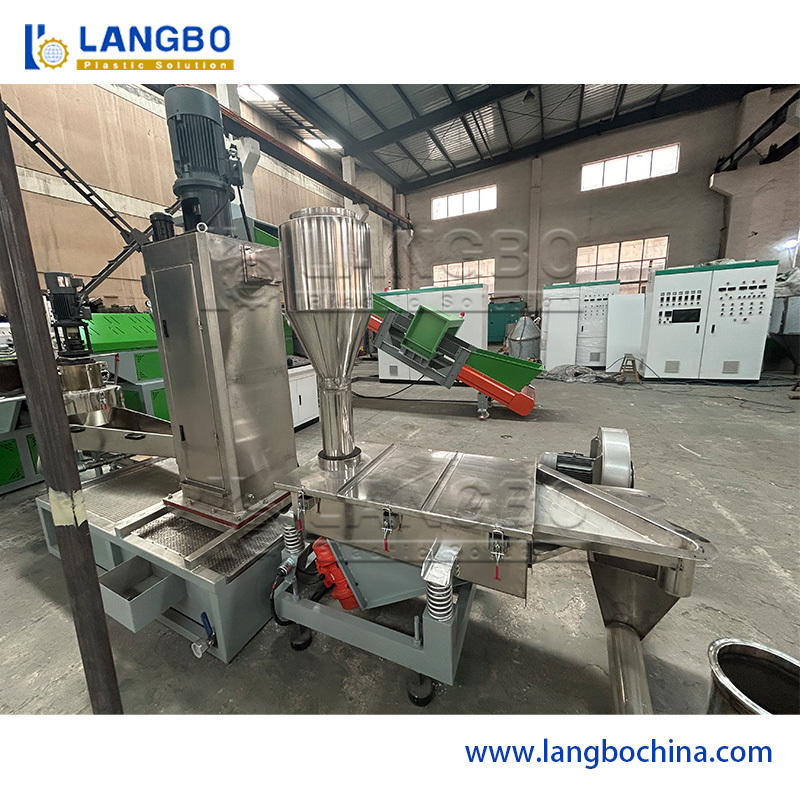

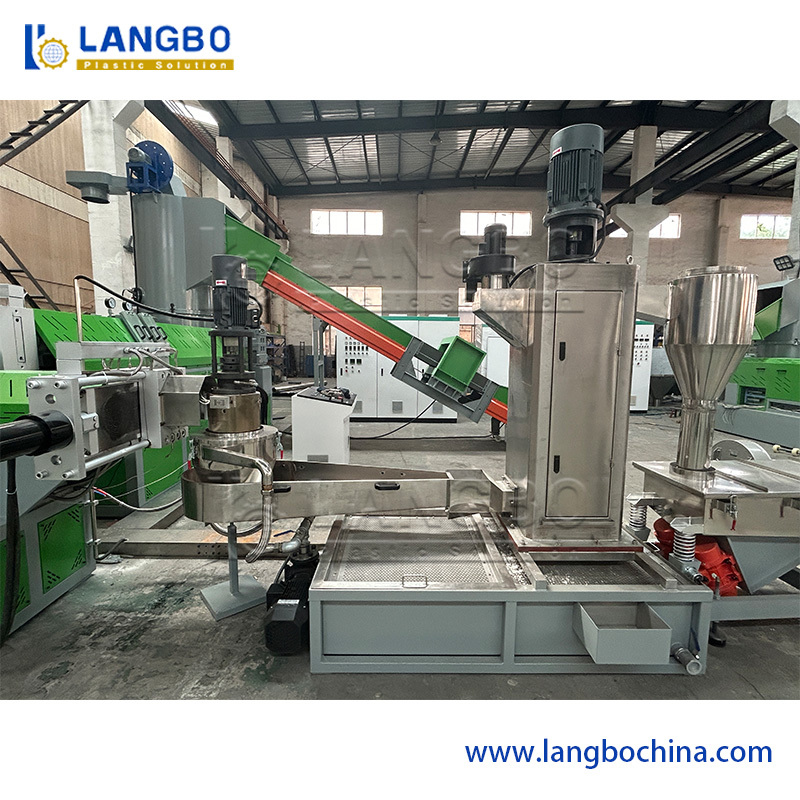

Granulating PP/PE Bags Plastic Pellets Extrusion Machine
1.Application
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production.
It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel
storage container and can run at high speed for a long time while extrude stably.
2.Features
1,advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity
3, Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4,Auxiliary machine: Pellets cooling & classifying
Process flow:
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Technique parameter
| Model number | Screw diameter (mm) | Rotational speed of screw (rpm) | Pellets size(mm) | Main motor power (kw) | Heating power of Barrel (kw) | Production capacity (kg/h) | Central height of machine (mm) | Net weight | Overall size (mm) |
| SJSZ45 | 45/90 | 1-45 | 3-4mm | 15 | 9.6 | 70-80 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 3-4mm | 22 | 11.5 | 80-120 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1-40 | 3-4mm | 22 | 18 | 150-180 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 3-4mm | 37 | 24 | 250-300 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 3-4mm | 55 | 36 | 320-450 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 3-4mm | 110 | 88 | 650-800 | 1000 | 5500 | 6000*1600*2500 |
